USB 3.2 Gen2 C-C 90° Angle Cable

Model: PR-U3MM002

Standard	USB 3.2 Gen 2×2 (20Gbps)
Power Delivery	USB PD 3.0 — up to 240W (48V/5A)
Data Rate	20 Gbps
Connector Angle	90° Right Angle (one end)
Connector	USB-C Male to USB-C Male (90°), Gold-plated
Cable Type	E-Marker Chip Embedded
Conductor	Pure Copper (OFC)

USB 3.2 Gen2×2 right-angle cable with 20Gbps data transfer. The 90-degree connector design is ideal for tight spaces and cable management.

Bandwidth	20Gbps
Resolution Support	4K@60Hz
Connector	USB-C male to USB-C male
Length Options	0.5m, 1m, 1.5m,2m,3m
Wire Gauge	30AWG / 28AWG by length

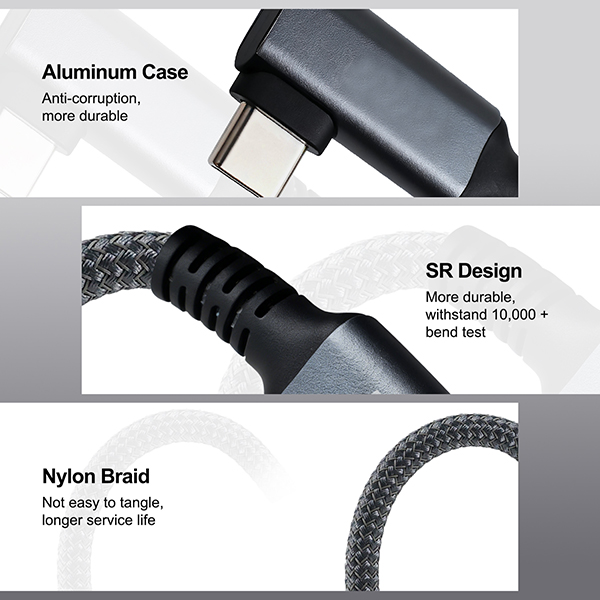

Shielding	Triple shielding with aluminum foil and braid
Jacket	PVC, TPE, braided, or custom
OEM Options	Logo, color, jacket, connector shell, packaging
MOQ	500 pcs per SKU
Lead Time	15-25 days after sample approval

✓ 90° right-angle connector

✓ 20Gbps Gen2×2 speed

✓ 240W power delivery

✓ Space-saving design

✓ Ideal for tight cable routing

✓ Pure Copper Core Conductor

✓ Custom Length OEM Available

✓ RoHS Compliant Materials

CE RoHS FCC

0.5m 1m 2m 3m
