DisplayPort 2.1 (VESA DP80 Certified)

Model: PR-DP16K001

Specifications

Standard	DisplayPort 2.1 (VESA DP80 Certified)

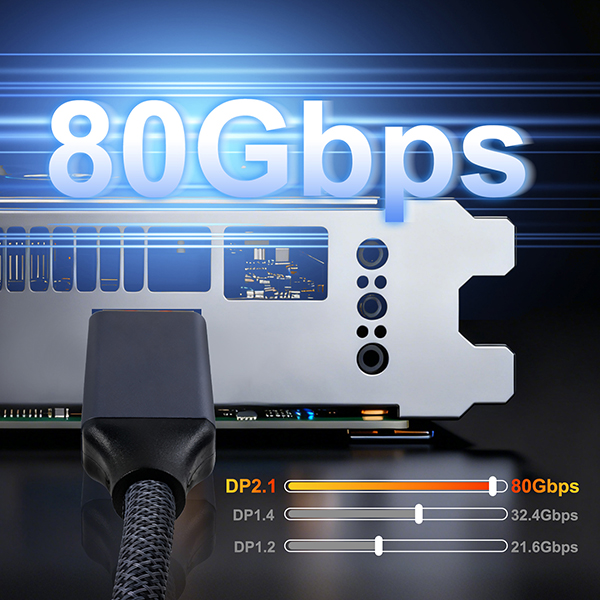

Bandwidth	80 Gbps (UHBR20)
Resolution	16K@60Hz / 8K@120Hz / 4K@240Hz
HDR Support	HDR10, HDR10+, Dolby Vision
Audio	Up to 32 channels, 1536 kHz
Wire Gauge	30 AWG/28AWG
Conductor	Pure Copper (OFC)

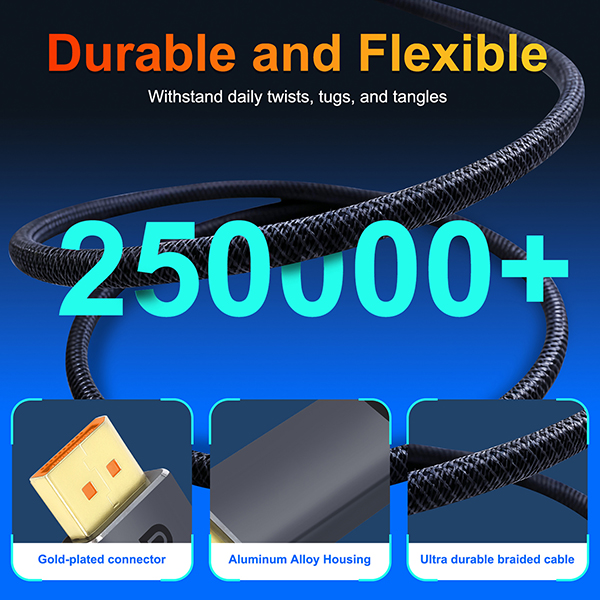

Jacket Material	PVC / Nylon Braided
Compliance	RoHS, CE, FCC, VESA DP80 Certified

Product Overview

VESA-certified DisplayPort 2.1 cable with 80Gbps bandwidth. Supports 16K@60Hz, 8K@120Hz, and 4K@240Hz. The highest performance DisplayPort cable available, certified to VESA DP80 standard.

Parameter

Bandwidth	80Gbps
Resolution Support	16K@60Hz/ 8K@120Hz with DSC
Connector	DisplayPort male to DisplayPort male
Length Options	0.5m, 1m, 1.5m,2m,3m,5m
Wire Gauge	30AWG / 28AWG by length
Shielding	Triple shielding with aluminum foil and braid
Jacket	PVC, TPE, braided, or custom
OEM Options	Logo, color, jacket, connector shell, packaging
MOQ	500 pcs per SKU
Lead Time	15-25 days after sample approval

KEY FEATURES

✓ 80Gbps UHBR20 bandwidth

✓ VESA DP80 certified

✓ 16K@60Hz resolution support

✓ DSC 1.2a compression

✓ Backward compatible with all DP versions

APPLICATIONS

• Next-gen gaming displays
• 8K professional monitors
• VR/AR headsets
• High-refresh-rate gaming

CERTIFICATIONS

CE RoHS FCC VESA DP80 Certified

AVAILABLE LENGTHS

0.5m 1m 2m 3m
