| Standard | Cat8 (ISO/IEC 11801-1 Class II / ANSI/TIA-568-C.2-1) |
| Bandwidth | 2000 MHz |
| Data Rate | 40 Gbps (40GBASE-T) |
| Max Distance | 30 m (40GBASE-T) / 100 m (10GBASE-T) |
| Shielding | S/FTP (Individual Pair Foil + Overall Braid) |
| Wire Gauge | 26 AWG |
| Conductor | Pure Copper (OFC) |

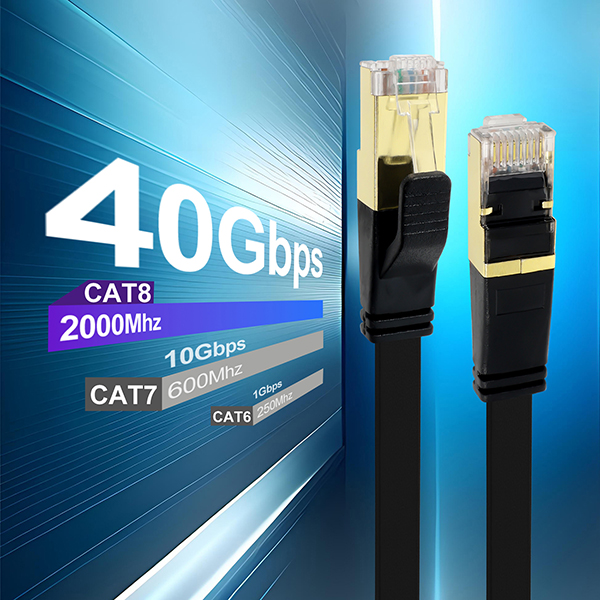

Factory-direct Flat CAT8 S/FTP shielded cable engineered for 40Gbps Ethernet at 2000MHz bandwidth — the highest performance network cable for demanding data center and enterprise environments.

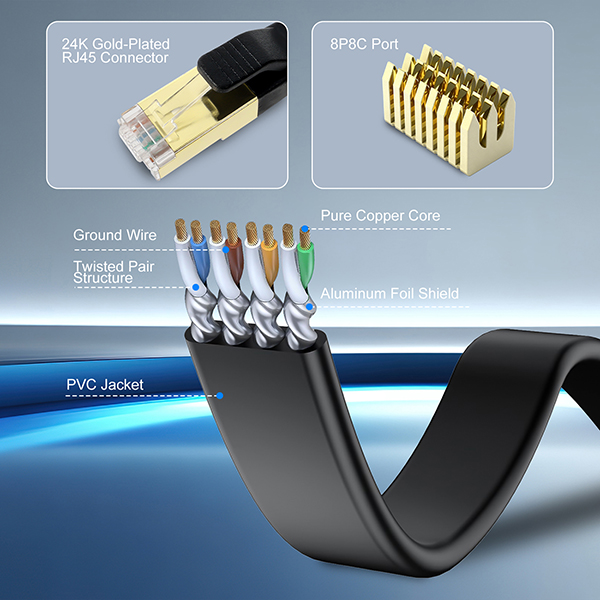

The ultra-flat profile enables discreet routing under carpets and through tight spaces without sacrificing performance. Double shielding (S/FTP) with individual pair foil and overall braid delivers maximum EMI/RFI rejection. 24K gold-plated RJ45 connectors ensure reliable, low-resistance connections. Backward compatible with all Cat5e through Cat7 equipment.
| Bandwidth | 2000Mhz |
| Pairs | 4 Twisted Pairs |
| Connector | 8P8C RJ45, 24K Gold-plated |
| Length Options | 0.5m, 1m, 1.5m,2m,3m,5m,10m,15m,20m |
| Wire Gauge | 26AWG by length |
| Shielding | S/FTP (Individual Pair Foil + Overall Braid) |
| Jacket | PVC |
| OEM Options | Logo, color, jacket, connector shell, packaging |
| MOQ | 500 pcs per SKU |
| Lead Time | 15-25 days after sample approval |
