| Standard | Cat7 (ISO/IEC 11801 Class F) |
| Bandwidth | 600 MHz |
| Data Rate | 10 Gbps (10GBASE-T) |
| Max Distance | 100 m (10GBASE-T) |

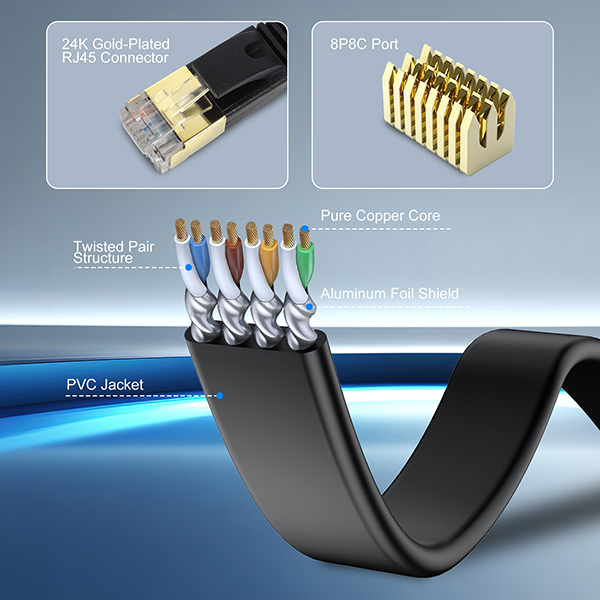

| Shielding | S/FTP (Individual Pair Foil + Overall Braid) |
| Wire Gauge | 26 AWG |
| Conductor | Pure Copper (OFC) |

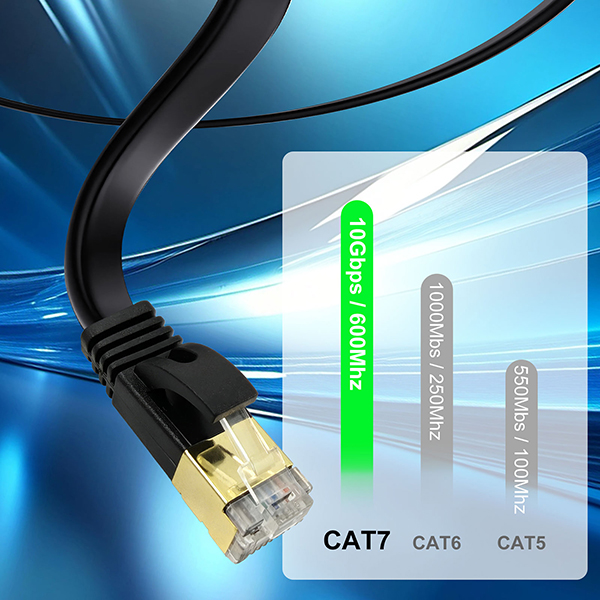

Factory-direct Flat CAT7 S/FTP shielded cable engineered for 10Gbps Ethernet at 600MHz bandwidth. The ultra-flat profile makes it ideal for routing under carpets, along skirting boards, and through tight spaces. Individual pair shielding with overall braid (S/FTP) provides superior EMI/RFI rejection. 24K gold-plated RJ45 connectors ensure low-resistance contact and long-term durability. Backward compatible with Cat5e, Cat6, Cat6A equipment. Available in lengths from 0.5m to 30m with custom OEM lengths available.
| Bandwidth | 10Gbps |
| Pairs | 4 pairs 8p8c |
| Connector | 8P8C RJ45, 24K Gold-plated |
| Length Options | 0.5m, 1m, 1.5m,2m,3m,5m,10m |
| Wire Gauge | 26AWG by length |
| Shielding | S/FTP (Individual Pair Foil + Overall Braid) |
| Jacket | PVC |
| OEM Options | Logo, color, jacket, connector shell, packaging |
| MOQ | 500 pcs per SKU |
| Lead Time | 15-25 days after sample approval |
